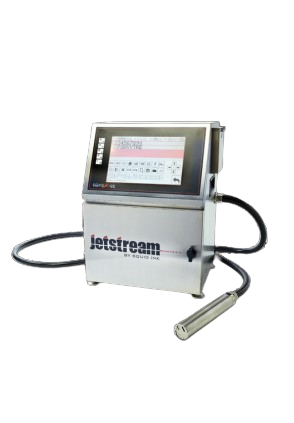

Jetstream-Sonic

  • Brand: Squid Ink
Description:

Squid Ink's JetStream® Sonic CIJ printing system is designed to print high-quality small characters on a variety of substrates: porous, non-porous, smooth, textured, curved, concave, and more. Printing up to 5 lines of text, the JetStream Sonic offers a reliable yet cost-effective solution for virtually any small character, key product coding application. CIJ's JetStream Sonic printer operates at 94kHz vs. the current JetStream at 76.8kHz. The higher the kHz operating frequency, the more droplets are available per second of printing - 94,000 (JetStreamSonic) vs 76,800 (JetStream). Increased droplet availability translates to nearly 20% higher print speed capability compared to standard Jetstream CIJ printers. The higher operating frequency also allows JetStream Sonic to come as standard with a 50 micron nozzle.

Specification:
  • • Print Technology – Continuous Ink Jet for pigmented inks
  • • Nozzle Size – 60μm nozzle standard
  • • Print Speed – Up to 1,000 feet/minute (305m/min) 5×5 single line
  • • Max Print Lines – 5 lines @ 5×5 font, 4 lines @ 7×5 font matrix
  • • Font Matrix Configurations – 5×5, 7×5, 9×7, 12×12, 16×16, 24×24, 32×32
  • • Character Height – 0.07” – 0.59” (1.8mm – 15mm); up to 32 dot high font with single line of text
  • • Throw Distance – Up to 1.2” (30mm) distance from printhead to substrate
  • • Display – 1280x800, 10.1” LCD touchscreen
  • • Message Storage – 8GB
  • • Software Features – Bar codes, graphics, counter, lot counter, shift code, time and date, expiration date
  • • Operating Features – One button print start / stop, control print delay, reverse print, invert print, bold print, auto-start self-clean
  • • CleanJet™ – Quick and easy one button start/stop process for automatic self-cleaning operation
  • • Communication Inputs – Photocell/trigger, encoder, reverse print, BCD select, RS232, reset counter
  • • Communication Outputs – Alarm light (3-color), print ready, warning
  • • Ports – Encoder, photocell, serial and alarm beacon, I/O, network, and USB connections
  • • Printhead – Compact and durable stainless steel design,omni-directional print capability
  • • Printhead Dimensions – 9.25” (23.5cm) long, 1.5” (3.8cm) in diameter
  • • Printhead Cable – Vinyl-covered armored conduit; 9.8’ (3m) umbilical length standard; 13.1’ (4m) optional
  • • Cabinet Construction – Stainless steel cabinet
  • • Cabinet Dimensions – 19.3” (49cm) H x 14.6” (37cm) W x 12.2” (31cm)D
  • • Electrical Requirements – 90 - 240 VAC, 50/60Hz
