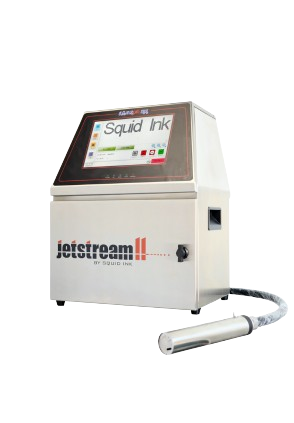

Jetstream II

• Brand: Squid Ink

Description:

Squid Ink’s JetStream II™ CIJ printing system is designed to print superior quality small characters on a variety of substrates: porous, non-porous, smooth, textured, curved, concave and more. Printing up to 5 lines of text, the JetStream II offers a reliable, yet cost effective solution for virtually any small character, primary product coding application.

Specification:

• • Print Technology – Continuous Ink Jet
• • Nozzle Size – 60μm nozzle standard
• • Print Speed – Up to 1,000 feet/minute (305m/min) 5x5 single line
• • Max Print Lines – 5 lines @ 5x5 font, 4 lines @ 7x5 font matrix
• • Font Matrix Configurations – 5x5, 7x5, 9x7, 12x12, 16x16, 24x24, 32x32
• • Character Height – 0.07” - 0.59” (1.8mm - 15mm); up to 32 dot high font
with single line of text
• • Throw Distance – Up to 1.2” (30mm) distance from printhead to substrate
• • Display – 1280x800, 10.1” LCD touchscreen
• • Message Storage – 8GB
• • Software Features – Bar codes, graphics, counter, lot counter, shift code, time and date, expiration date
• • Operating Features – One button print start / stop, control print delay, reverse print, invert print, bold print, auto-start self-clean
• • CleanJet™ – Quick and easy one button start/stop process for automatic self-cleaning operation
• • Communication Inputs – Photocell/trigger, encoder, reverse print, BCD select, RS232, reset counter
• • Communication Outputs – Alarm light (3-color), print ready, warning
• • Ports – Encoder, photocell, serial and alarm beacon, I/O, network, and USB connections
• • Printhead – Compact and durable stainless steel design,omni-directional print capability
• • Printhead Dimensions – 9.25” (23.5cm) long, 1.5” (3.8cm) in diameter
• • Printhead Cable – Vinyl-covered armored conduit; 9.8’ (3m) umbilical length standard; 13.1’ (4m) optional
• • Cabinet Construction – Stainless steel cabinet
• • Cabinet Dimensions – 19.3” (49cm) H x 14.6” (37cm) W x 12.2” (31cm)D
• • Electrical Requirements – 90 - 240 VAC, 50/60Hz
